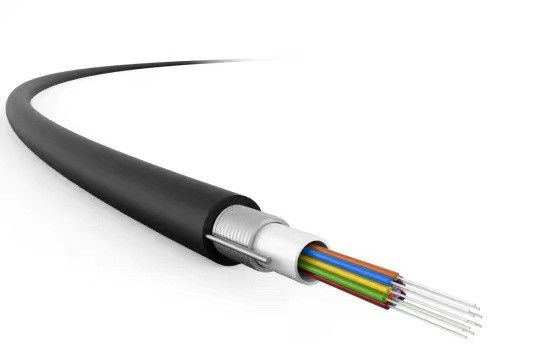

GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable

Ποσότητα παραγγελίας min : 1 χλμ. Τιμή : 60-200USD/KM
Συσκευασία λεπτομέρειες : Ξύλιμο τύμπανο Χρόνος παράδοσης : 3-5 ημέρες, εξαρτάται από την ποσότητα σας
Όροι πληρωμής : L/C, D/A, T/T, Western Union, MoneyGram Δυνατότητα προσφοράς : 60000 χιλιόμετρα/μήνα
Τόπος καταγωγής: Guangdong, Κίνα Μάρκα: Jiqian/Customize/ OEM
Πιστοποίηση: CE/ISO9001/RoHS/FCC Αριθμό μοντέλου: Gyxtw-4/6/8/12B1

Λεπτομερής ενημέρωση

Αρίθμηση ινών: 2-24 πυρήνας Μέλος δύναμης: Ατσάλινα νήματα
Εγγύηση: 25 ετών Μούβ: 1 χλμ.
ΚΑΕ: Ναί Θωρακισμένος: Ναί
εργοστάσιο: Ναί Κατασκευή: Λανθάνον χαλαρό σωλήνα
ΟΧΙ ΚΥΡΙΑ: 24 ζευγάρια Τύπος σύνδεσης: SC, LC, FC, ST ή προσαρμοσμένο
Εξωτερική διάμετρο: 10.5~18.8+_0.5mm Ενισχύει τον πυρήνα: FRP
Κώδικας ινών: Gyta53 Θερμοκρασία: -20 βαθμοί ~+70 βαθμοί
Εξωτερική κυρία καλωδίων: 8.910.2mm Θήκη: HDPE/LSZH
Υλικό θωράκισης: Κυματοειδής ταινία αλουμινίου Πανοπλία: Διπλή ταινία από χάλυβα
Υλικό χαλαρό σωλήνα: PBT ή ζελατίνα Σακάκι: PE, MDPE, LSZH, PVC
Τοποθέτηση του τρόπου: Δάσκαλος/αεροδιάστατο Είδος: Δροσίζω
Εξωτερικό μπουφάν: ΡΕ Εφαρμογή: Υπαίθρια επικοινωνία
Υπεριώδη αντίσταση: Διαθέσιμος Αδιάβροχος: Ναί
Δομή: Χαλαρό σωλήνα Άραμιδικές ίνες: Εισαγωγή ή εγχώρια
Σπιθαμή: 100μ, 150μ, 200μ. Ίνες ανά σωλήνα: 12-144
Μέθοδοι τοποθέτησης: Εναέριος Καλώδιο: Μαύρος
Μοντέλο: PDLC-PDLC Εγκατάσταση: Αεροπλέγμα,αεροπλέγμα,Δάκτης
Επισημαίνω:

single mode armored fiber optic cable

,

outdoor HDPE fiber optic cable

,

aerial duct optical cable

Περιγραφή προϊόντων

Product Description

OEM Outdoor Duct Aerial GYXTW Armored Fiber Optic Cable Single Mode Multi Mode G652D 2 4 6 8 12 24 Core

Product Description :

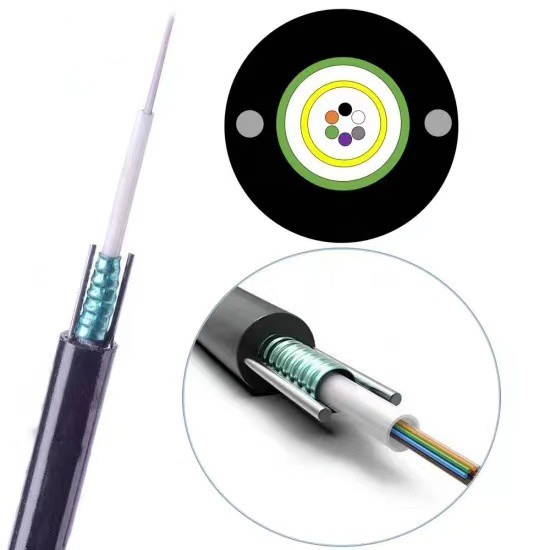

GYXTW optical cable, also called central loose tube or light armored fiber optic cable, is one of the most widely used outdoor cables. It is typically available in 2 to 12 cores based on the fiber color code.

  • GY stands for outdoor cable design

  • X indicates the central loose tube structure

  • T means the tube is filled with water-blocking gel

  • W represents the polyethylene outer sheath with steel wire reinforcement

Thanks to its armored structure and durable HDPE jacket, GYXTW cable is ideal for aerial, duct, and direct-buried installation. This makes it a reliable choice for FTTx, long-distance communication, and backbone network projects.

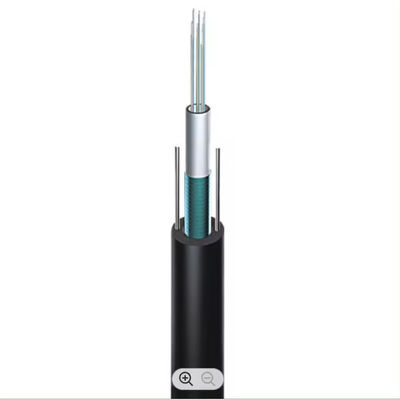

GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable 0

Characteristics

  • Parallel steel wire strength members provide extra protection and stability.

  • Central loose tube with filling compound protects fibers and steel parts from moisture.

  • Corrugated tape armor delivers excellent crush resistance and durability.

  • Compact, lightweight construction for easy handling.

  • Simple and efficient installation.

Operating Temperature

  • From -40°C to +60°C, ensuring stable performance in harsh environments.

Applications

  • Designed for outdoor optical distribution networks.

  • Perfect for aerial, duct, and pipeline installation.

  • Suitable for long-haul transmission and LAN communication projects.

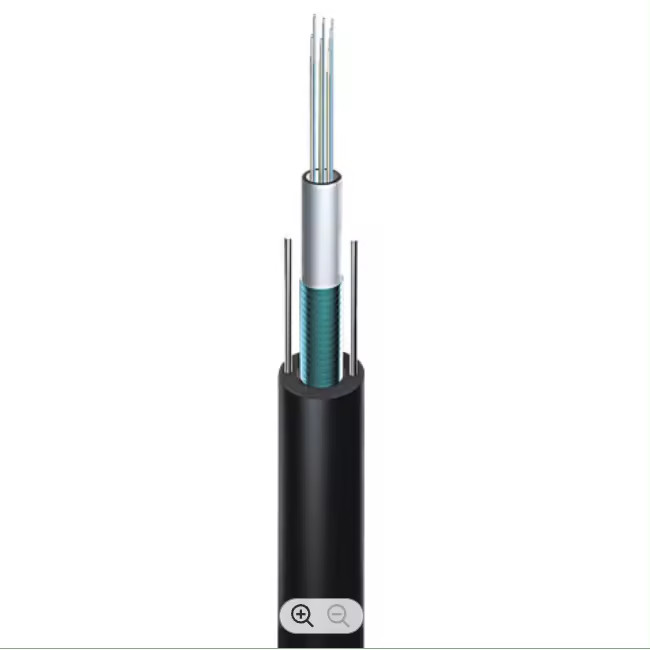

GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable 1
PRODUCT SPECIFICATIONS
Item
Parameters
Fiber Count
12
Colored coated fiber
Dimension
250µm±15µm
Color
Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua
Loose tube
Dimension
2.2mm±0.1mm
Material
PBT
Color
nature
Filler
MATERIAL
none
color
none
Strength Member
Dimension
0.7mm±0.05mm
material
Phosphating steel wire
Armoured
Material
Plastic coated steel strip
Outer jacket
Material
PE
color
black
