GYTS Direct Burial Fiber Optic Cable Armored Underground 2 288 Core Outdoor Cable
Υπεύθυνος : JQ CABLE
Τηλεφωνικό νούμερο : +8618122383351
Whatsapp : +8618122383351
Ποσότητα παραγγελίας min : | 1 χιλιόμετρο | Συσκευασία λεπτομέρειες : | Ξύλιμο τύμπανο |
---|---|---|---|
Χρόνος παράδοσης : | 2-5 ημέρες | Όροι πληρωμής : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Δυνατότητα προσφοράς : | 8000 χιλιόμετρα το μήνα |
Τόπος καταγωγής: | Guangdong, Κίνα | Μάρκα: | JQ/OEM/Customize |
---|---|---|---|
Πιστοποίηση: | CE/ISO9001/RoHS/FCC | Αριθμό μοντέλου: | Gyta 12core/24core/48core |
Λεπτομερής ενημέρωση |
|||
Τύπος: | Καλώδιο TAC | Τόπος καταγωγής: | Guangdong, Κίνα |
---|---|---|---|
Τύπος ίνας: | G652D Single Mode ή ως αίτημά σας | Αρίθμηση ινών: | 2-144 πυρήνες |
Μήκος: | προσαρμοσμένος | Χρώμα: | προσαρμοσμένος |
Σωλήνας: | Πολλαπλές χαλαρές σωλήνες | κεντρικό μέλος δύναμης: | Χαλύβδινο σύρμα |
Θωρακισμένος: | Ταινία αργιλίου | Εξωτερική θήκη: | PE/ MDPE/ HDPE ή ως αίτημά σας |
Πακέτο: | Ξύλινο τύμπανο/προσαρμοσμένο | Εφαρμογή: | Άμεση ταφή/ αγωγός |
ΚΑΕ: | Διαθέσιμος | Θερμοκρασία λειτουργίας: | -40°C~+70°C |
Συνολική διάμετρο: | 110,4 mm ~ 13,10 mm | Σπάμ: | 100/200/300/400/500 μέτρα |
Υπαίθριος: | Υπαίθριο καλώδιο οπτικών ινών | Εσωτερικό μπουφάν: | ΡΕ |
Δείγματα: | Δωρεάν | Δομή: | κεντρικός χαλαρός σωλήνας |
Εξωτερικό σακάκι: | HDPE | Τυπικό μήκος: | 2.000μ/4.000μ |
Κεντρικό Μέλος Ενίσχυσης: | FRP | Διάμετρος σακακιών: | 12.8 |
Υπηρεσία: | OEM & ODM | Αριθμός αγωγών: | ≥ 10 |
Αρωματισμένο: | Ταινία αργιλίου | ||
Επισημαίνω: | GYTA aluminium armored fiber optic cable,144 core outdoor fiber optic cable,duct direct burial fiber optic cable |
Περιγραφή προϊόντων

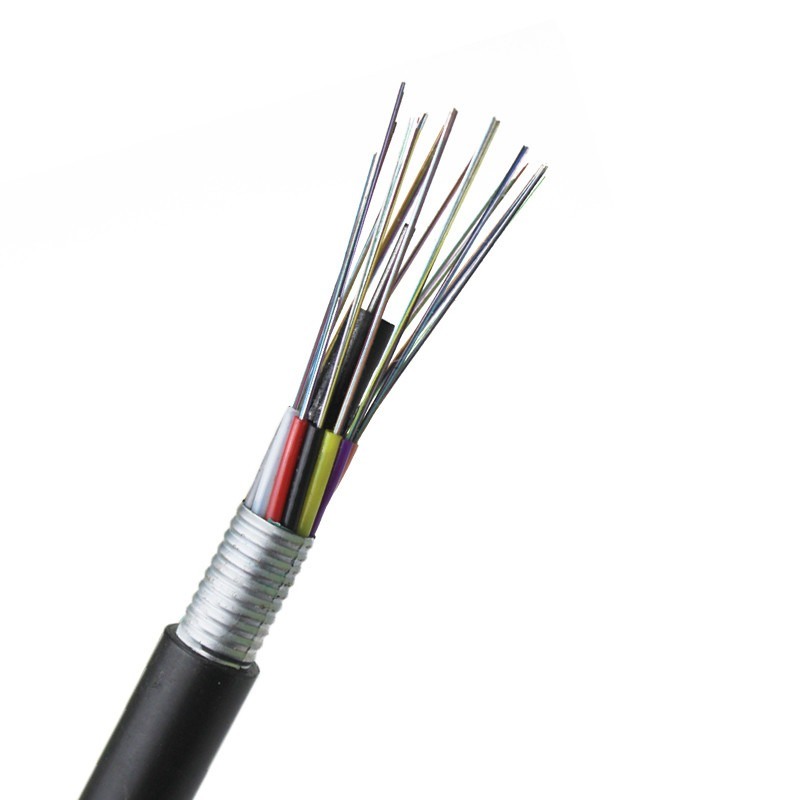

GYTA Armored Outdoor Fiber Optic Cable – Aluminum Tape Moisture Resistant Design
Product Overview
GYTA fiber optic cable uses a stranded loose tube structure around a central strength member to form a compact and stable core The core is wrapped with aluminum polyethylene laminate tightly bonded to a PE inner sheath providing strong longitudinal and radial moisture blocking Corrugated steel tape and a durable MDPE outer jacket offer additional mechanical protection making the cable ideal for outdoor environments
Why Choose GYTA
Unlike direct buried cables GYTA is designed for aerial and duct installation delivering reliable performance for long distance telecommunication networks The letter A stands for aluminum tape which offers excellent anti corrosion and moisture protection ensuring longer service life in ducts and harsh environments
Key Features
High Strength Construction – Superior tensile and crush resistance with long term durability
Central Strength Member – Phosphatized steel wire core optionally coated with PE for flexibility and corrosion protection
Water Blocking System – Tubes and interstices fully filled with water blocking gel to prevent longitudinal water penetration
Moisture Protection – Aluminum tape with bonded PE sheath creates an effective barrier against water and rust
Extended Lifespan – Stable optical transmission for long term reliable operation
Wide Applications – Perfect for telecom backbone metropolitan networks CATV and high speed data links
Specification:
item | value |
Model Number | GYTA |
Type | Outdoor Fiber Optic Cable |
Place of Origin | Guangdong,China |
Brand Name | jiqian |
Number of Conductors | ≥ 10 |
Fiber count | 2-288 Cores |
Fiber Type | G652D Single mode or as your request |
Loose tube material | PBT |
Central strength member | steel wire |
Armoured | Al tape |
Outer Sheath | PE |
Cable Structure | Multi-Loose Tube Aluminum/Steel Tape armor |
Color | Black or as your need |
Package | Fumigation free wooden drum |
Installation | aerial, in duct |
Certification | CE/ROHS/ISO9001 /ANATEL |
OEM | Available |

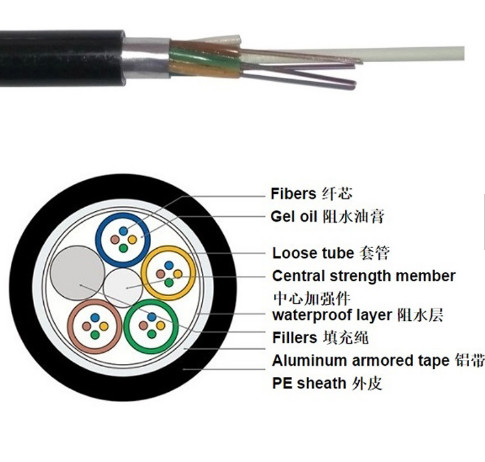

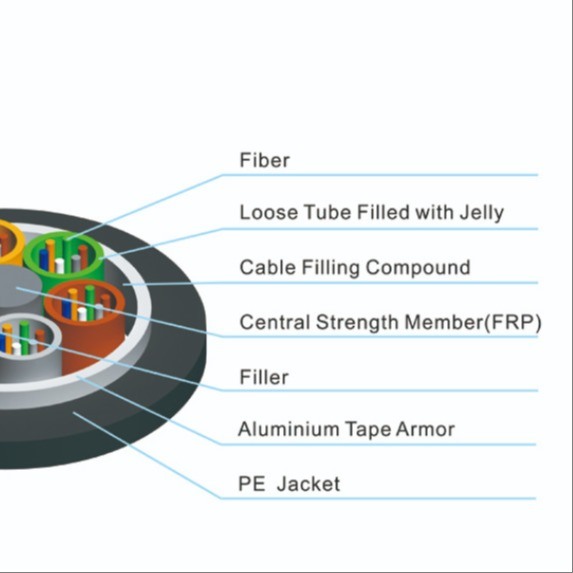

Structure and Technical Specifications:
Fiber | Nominal | Nominal | Max Fiber | Max No. | Allowable Tensile | Allowable Crush | ||
Count | Diameter | Weight | Per Tube | of(Tubes+ | Load(N) | Resistance(N/100mm) | ||
(mm) | (kg/km) | fillers) | Short Term | Long Term | Short Term | Long Term | ||
2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
218~288 | 19 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.
WHY CHOOSE US:
Certification:
FAQ
1. Who Are We
We are a professional fiber optic cable manufacturer in Guangdong China founded in 2017 Our main markets include Africa South America Western Europe the Middle East Southeast Asia and South Asia with a team of 11 to 50 skilled employees
2. How Do We Guarantee Quality
Pre production samples provided for approval before mass production
100 percent final inspection before shipment to ensure quality
3. What Products Do We Offer
Fiber Optic Cables FTTH Drop Cables Indoor and Outdoor Communication Cables and related accessories
4. What Services Are Available
Delivery Terms: FOB EXW
Payment Methods: T T L C D P D A Credit Card PayPal Western Union Cash
Currencies: USD CNY
Languages: English Chinese
5. What Is the Minimum Order Quantity
Our MOQ is 1KM and we welcome trial orders for new projects
6. Can I Get a Sample
Yes we offer free samples you just pay for express shipping
7. Do You Support OEM or ODM
Yes we provide OEM and ODM service with custom design logo and packaging options
8. What Is the Lead Time
Normally 3 to 7 working days depending on quantity and specifications
