ODM Manufactory Supply Indoor Cable Multi Mode 6 12 24 Core GJFJV
Multi-purpose Distribution Fiber Optic Cable
Uses 600µm or 900µm flame-retardant tight buffer fibers as the optical medium, wrapped with aramid yarn for strength, and completed with PVC or LSZH jacket. High-quality fibers and precise manufacturing ensure excellent performance for indoor optical communication.
Characteristics
-
Excellent mechanical and environmental performance
-
Flame retardant and standard-compliant
-
Flexible and easy to install and splice
-
High-capacity data transmission
-
Suitable for diverse market and client needs
Optical Characteristics
|
|
|
G.652D
|
50/125um
|
625/125μm
|
|
Attenuation
|
@850nm
|
|
≤3.0dB/km
|
≤3.0dB/km
|
|
(+20°C)
|
@1300nm
|
|
≤1.0dB/km
|
≤1.0dB/km
|
|
|
@1310nm
|
≤0.36dB/km
|
|
|
|
|
@1550nm
|
≤0.22dB/km
|
|
|
|
Bandwidth(ClassA)
|
@850nm
|
|
2500MHz-km
|
2200MHz-km
|
|
|
@1300nm
|
|
21000MHz-km
|
2600MHz-km
|
|
Numerical Aperture
|
|
|
0.200±0.015NA
|
0.275±0.015NA
|
|
Cable Cut-off Wavelength λcc
|
|
≤1260nm
|
|
Cable diameter
| |
MPC-02 |
MPC-04 |
MPC-06 |
MPC-08 |
MPC-10 |
MPC-12 |
| Cable Diameter(mm) |
4.1±0.25 |
4.8±0.25 |
5.1±0.25 |
6.2±0.25 |
6.5±0.25 |
6.8±0.25 |
| Cable Weight(kg/km) |
12 |
20 |
24 |
29 |
32 |
35 |
| Tight Buffer Fiber Diameter |
900±50μm |
Technical Parameters
| Tight Buffer Indoor Fiber Optic Cale GJFJV |
Cable
Count |
Outside
Diameter |
Tight
buffer
Diameter |
Weight
|
Minimum
allowable Tensile
Strength(N) |
Minimum allowable
Crush Load
(N/100mm)
|
Minimum
Bending
Radius (MM)
|
Storage
temperature |
| (MM) |
(MM) |
(KG) |
short term |
long term |
short term |
long term |
short term |
long term |
(°C) |
| 2 |
3 |
0.9 |
15 |
600 |
200 |
1000 |
200 |
20D |
10D |
-40+60 |
| 4 |
5 |
0.9 |
22 |
600 |
200 |
1000 |
200 |
20D |
10D |
-40+60 |
| 6 |
5 |
0.9 |
23 |
600 |
200 |
1000 |
200 |
20D |
10D |
-40+60 |
| 8 |
5.5 |
0.9 |
28 |
600 |
200 |
1000 |
200 |
20D |
10D |
-40+60 |
| 12 |
6 |
0.9 |
38 |
600 |
200 |
1000 |
200 |
20D |
10D |
-40+60 |
| 16 |
7.2 |
0.9 |
42 |
600 |
200 |
1000 |
200 |
20D |
10D |
-40+60 |
| 24 |
8.3 |
0.9 |
58 |
600 |
200 |
1000 |
200 |
20D |
10D |
-40+60 |
| 48 |
10 |
0.9 |
96 |
600 |
200 |
1000 |
200 |
20D |
10D |
-40+60 |
Application
1.Used in pigtails and patch cords
2.Used as interconnect lines of equipments.
3.Used in indoor and outdoor cabling, especially used as distribution cable
4.Used in optical connections in optical communication rooms and optical distribution frames
Product Detail

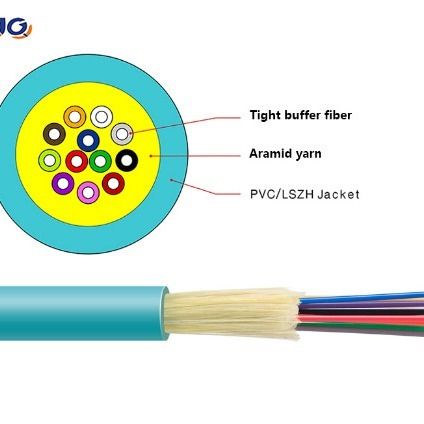

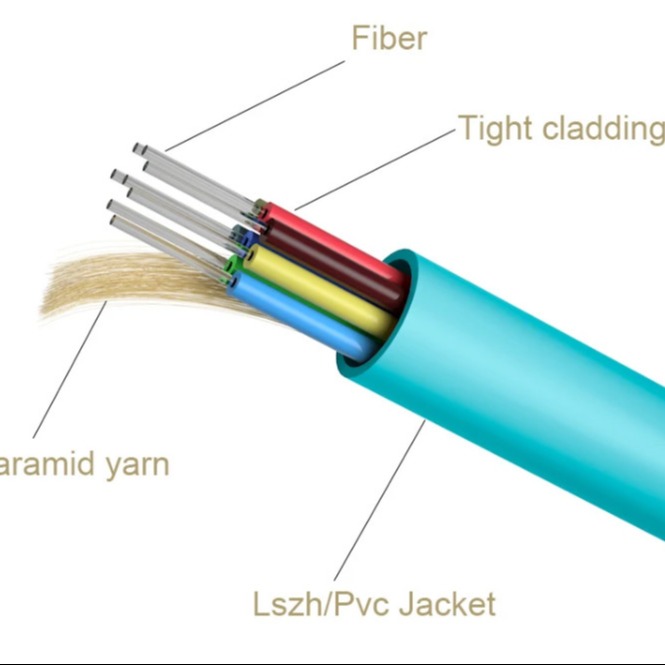

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.
Packing

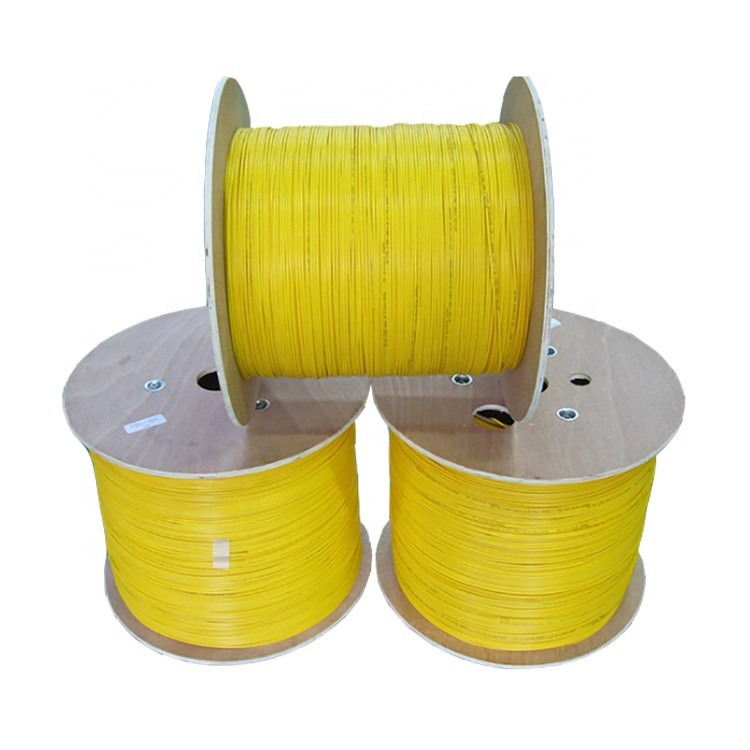

2km or customized length export wooden drum
FAQ – Fiber Optic Cable
Why Choose Us?
Professional manufacturer with low MOQ and free samples, stable high quality, fast solutions, and competitive pricing.
OEM/ODM Service?
Yes, we accept OEM and ODM.
Logo Printing?
Yes, logos can be printed on products or boxes.
Shipping Methods?
Delivery by sea, land, or air is available.
Payment Options?
LC, T/T, Western Union, Alipay accepted.
Delivery Time?
Usually 3–7 working days, depending on order quantity; we arrange shipment promptly after payment.
