OS2 SC to LC Duplex Single Mode 9 125 Optical Fiber Patch Cord
OS2 SC to LC Duplex Single Mode 9 125 Optical Fiber Patch Cord OS2 SC to LC Duplex Single Mode 9 125 Optical Fiber Patch Cord OS2 SC to LC Duplex Single Mode 9 125 Optical Fiber Patch Cord
Επικοινωνήστε

OS2 SC to LC Duplex Single Mode 9 125 Optical Fiber Patch Cord

Ποσότητα παραγγελίας min : 1 χλμ. Συσκευασία λεπτομέρειες : Εξαγωγή κιβώτιο καρτούν
Χρόνος παράδοσης : 5-8 ΕΡΓΑΣΙΜΕΣ ΗΜΕΡΕΣ Όροι πληρωμής : Western Union, T/T, L/C, Alipay
Δυνατότητα προσφοράς : 1000pcs ανά ημέρα
Τόπος καταγωγής: Guangzhou, Κίνα Μάρκα: Jiqian/Customize/ OEM
Πιστοποίηση: ISO 9001/CE/FCC/ROHS Αριθμό μοντέλου: Διάταξη SC-LC

Λεπτομερής ενημέρωση
Τύπος σύνδεσης: SC-LC ή Υβριδικό Μήκος: 1m 2m 3m ή προσαρμοσμένο
Υλικό: PVC/LSZH χρώμα: Κίτρινος
Είδος: Διάταξη οπτικών ινών Επαναληψιμότητα: ≤ 0,2 dB
Αρίθμηση ινών: Simplex ή duplex Ποιοτικός έλεγχος: Δοκιμή 100% πριν από την αποστολή
Επισημαίνω:

OS2 SC LC duplex fiber patch cord

,

single mode 9/125 fiber optic cable

,

SC to LC optical patch cord

Περιγραφή προϊόντων

Simplex & Duplex SC-LC Patch Cord SM OS2 9/125µm PVC/LSZH – Fiber Optic Patch Cable

Product Description

This SC-LC OS2 9/125µm single-mode patch cord provides stable, low-loss fiber connections for CATV systems, optical switches, terminal boxes and FTTH networks. Designed with durable PVC or LSZH jackets, the cable ensures reliable transmission, low insertion loss and high return loss. Available in simplex or duplex versions with SC, LC, ST or MTRJ connectors in PC/UPC/APC polishing.

Features

  • Low insertion loss

  • High return loss

  • Excellent repeatability & interchangeability

  • Strong environmental stability

  • PVC or LSZH jacket options

Applications

  • Communication rooms & data centers

  • FTTH / FTTX networks

  • LAN & high-speed transmission systems

  • Fiber optic sensors (FOS)

  • Optical communication equipment connections



Optical Characteristics

Mode SM MM
Polish UPC APC APC
Insertion Loss Typical ≤0.2dB Maximum ≤0.3dB ≤0.25dB
Return Loss ≥50dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB(1000 times mating)
Tensile Strengh >10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB(+25+65 93 R.H.100 hours)



Technical Data

Type



Standard,Master



Style

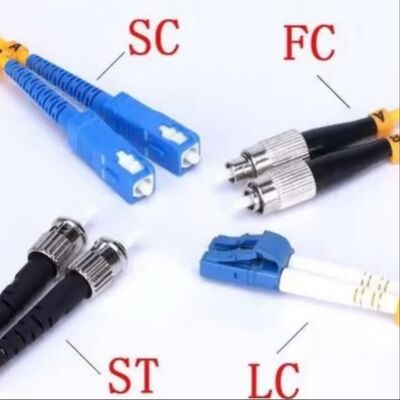

LC,SC,ST,FC.MU,DIN,D4,MPO,SC APC,FC/IAPC,LCIAPC.MU/APC



Fiber



Singlemode/Multimode

50/125,62.5/125 (Multimode) OM2&OM1

50/125,10G(Multimode)OM3



Cable



Simplex,Duplex

Φ3.0mm,Φ20mm,Φ0.9mm

PVC or LSZH



Polishing Manner



UPC,SPC,APC (8°&6°)



Insertion Loss



≤0.1dB(For Singlemode Master)

≤0.25dB(ForSinglemodeStandard)

≤0.25dB(ForMultimode)

Tested by JDSRM3750

ReturnLose (Singlemode)



UPC≥50dB

SPC≥55dB

APC≥60dB(typ.65dB)

Tested by JDSRM3750



Repeatability



±0.1dB



Operating temperature



-400C° to 850 C°



GeometryRequirement (Singlemode)

Ferrule Endface Radius

7mm≤R≤12mm(For APC)

10mm≤R≤25mm(For Standard)

Apex Offset≤30μm(For Master)

Apex Offset≤50μm(For Standard)

Under cut-50nmSU≤50nm

Tested by DORCZX-1

Recommed Products

OS2 SC to LC Duplex Single Mode 9 125 Optical Fiber Patch Cord 0

OS2 SC to LC Duplex Single Mode 9 125 Optical Fiber Patch Cord 1

OS2 SC to LC Duplex Single Mode 9 125 Optical Fiber Patch Cord 2



FAQ

1. Are you a trading company or manufacturer?
We are a real manufacturer with 10 years of experience, specializing in the research, development and production of fiber optic cables, FTTH drop cables, and patch cords. Our factory is located in Guangzhou, China. Welcome to visit us!



2. How about your product quality?
All fibers are 100% tested before delivery.
After price confirmation, free samples can be provided—you only need to cover the freight.



3. Do you accept small orders?
Yes, small orders are welcome. We support new customer projects because we know business always starts from small orders.



4. What is the lead time?
Usually 3–7 working days depending on order quantity.
We will arrange production and shipment as soon as payment is received.
