Product Description

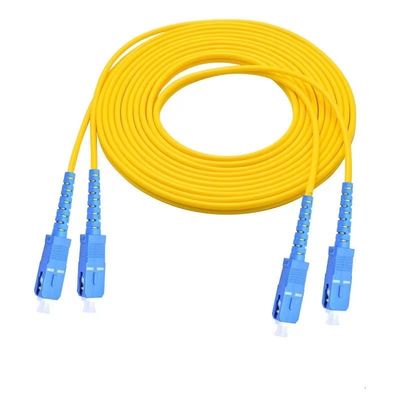

SC/APC to SC/UPC fiber optic patch cord provides stable, high-speed single-mode connections for telecom and data networks. Made of 9/125µm simplex fiber with a 3.0mm LSZH jacket, it offers excellent performance, flame retardance, and durability.
Each cable is factory-terminated, UPC polished, and 100% tested for insertion and return loss. It meets TIA/EIA-568-B.3 and Telcordia GR-326-CORE standards, ensuring superior optical quality.
Available in 1m, 2m, and 3m lengths, ideal for FTTH, FTTX, LAN, CATV, data centers, and telecom systems.
Key Features:
-
Connector: SC/APC to SC/UPC
-
Fiber Type: 9/125µm Single-Mode Simplex
-
Jacket: LSZH, 3.0mm
-
Factory polished and terminated
-
100% tested, compliant with TIA/EIA & Telcordia standards
-
Lengths: 1m / 2m / 3m
-
Applications: FTTH, FTTX, LAN, CATV, Data Center, Telecom

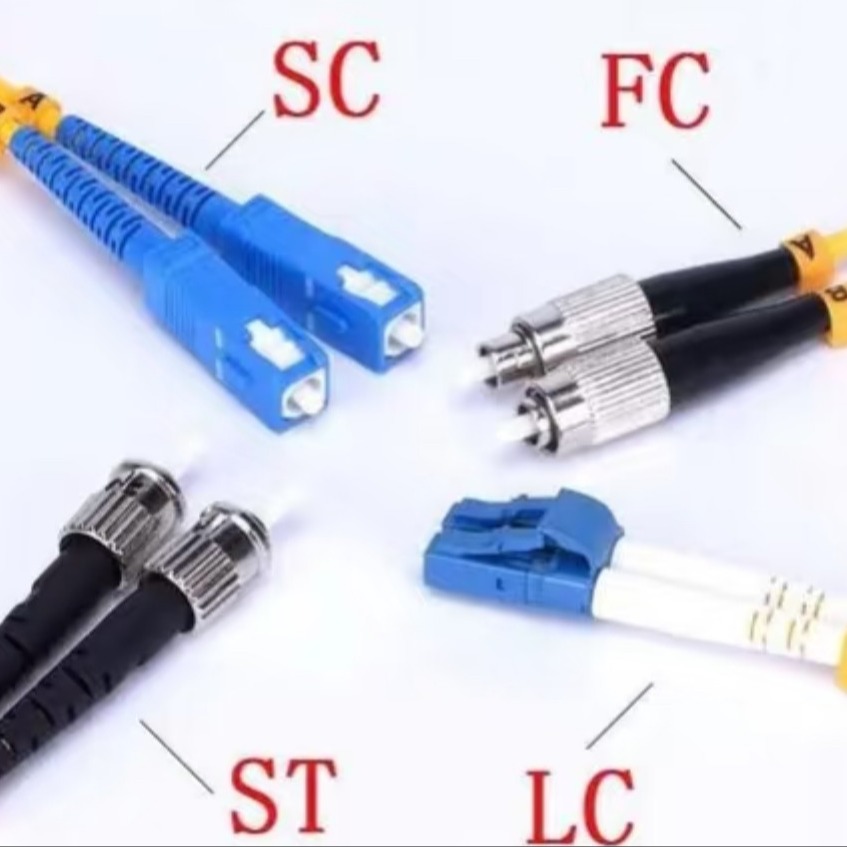

Connector Type
Feature
Low Insertion loss
High return loss
Good Repeatability
Good Interchange
Excellent Environmental Adaptability
Optical Characteristics
|
Parameter
|
PC
|
UPC
|
APC
|
Multi-mode
|
|
Insertion loss
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
|
Return loss
|
≥40dB
|
≥50dB
|
≥60dB
|
≥35dB
|
|
Exchange
|
≤0.2dB
|
|
Repeatability
|
≤0.2dB
|
|
Servicelife
|
>1000times
|
|
Tensile strength
|
>10kg
|
|
Temperature range
|
-40°C to +85°C
|
Technical Data
|
Type
|
Standard,Master
|
|
Style
|
LC,SC,ST,FC.MU,DIN,MPO,SC/APC,
FC/APC,LC/APC.MU/APC
|
|
Fiber
|
Singlemode/Multimode
50/125,62.5/125(Multi mode) OM2&OM1
50/125,10G(Multi mode)OM3
|
|

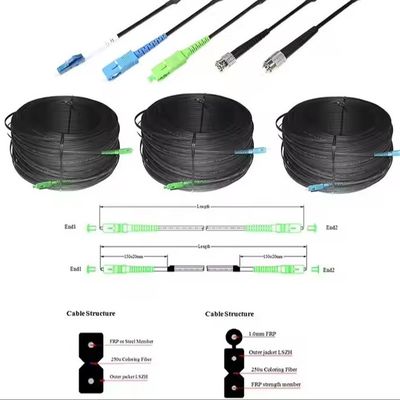

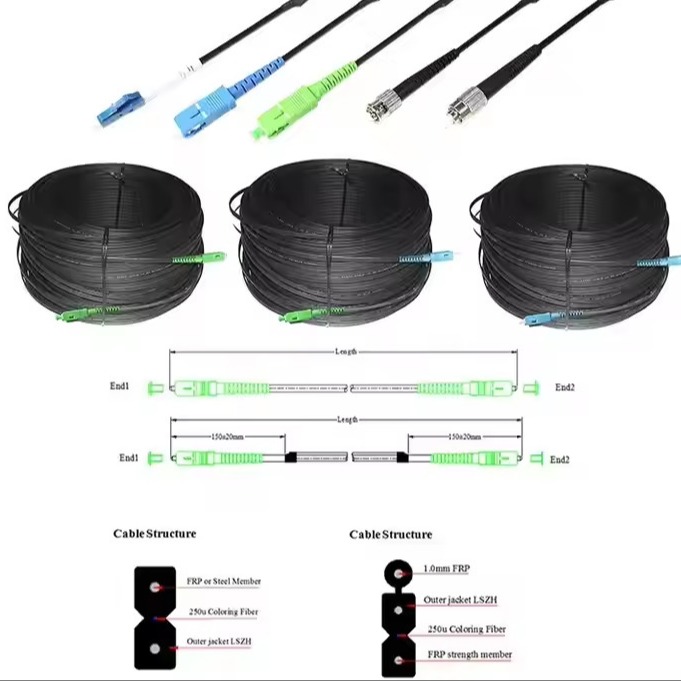

Cable
|
Simplex,Duplex
outer diameter:3.0mm,20mm,0.9mm
PVC or LSZH
|
|
Polishing Manner
|
UPC,SPC,APC(8°&6°)
|
|
Insertion Loss
|
≤0.1dB (For Single mode Master)
≤0.25dB (For Single mode Standard)
≤0.25dB (ForMultimode)
Tested by JDSRM3750
|
|
Return Loss
(Single mode)
|
UPC≥50dB
SPC≥55dB
APC≥60dB (typ.65dB)
Tested by JDSRM3750
|
|
Repeat ability
|
≤0.1dB
|
|
Operating temperature
|
-400 C° to 850 C°
|
|
Geometry Requirement
(Single mode)
|
Ferrule Endface Radius
7mm≤R≤12mm (For APC)
10mm≤R≤25mm (For Standard)
Apex Offset≤30μm (For Master)
Apex Offset≤50μm (For Standard)
Under cut-50nm SU≤50nm
Tested by DORCZX-1
|
Application
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS(fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Recommed Products
Packing & Delivery
Packing:100/Pcs in one Carton box or OEM.
Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
Deliverty: 3-5 days after payment dowm,According to ur order quantity.
Factory Pictures
FAQ – SC/APC to SC/UPC Fiber Optic Patch Cord
Q1: What’s the difference between SC/APC and SC/UPC?
SC/APC has an 8° angled end-face to reduce reflection, ideal for CATV and FTTx. SC/UPC has a flat polished surface, used in telecom and data networks.
Q2: Is it single-mode or multimode?
Single-mode (9/125µm) simplex fiber for long-distance, high-speed transmission.
Q3: What lengths are available?
Standard: 1m, 2m, 3m. Custom lengths available.
Q4: What is the jacket material?
3.0mm LSZH jacket—flame-retardant and safe for indoor use.
Q5: Are the cords tested?
Yes, 100% factory tested for insertion and return loss with QC records.
Q6: Which standards does it meet?
Complies with TIA/EIA-568-B.3 and Telcordia GR-326-CORE.
Q7: Where can it be used?
FTTH, FTTx, LAN, CATV, data centers, and telecom networks.
Q8: Can I customize connectors or lengths?
Yes, custom connectors (LC, FC, ST, etc.) and lengths are available.
