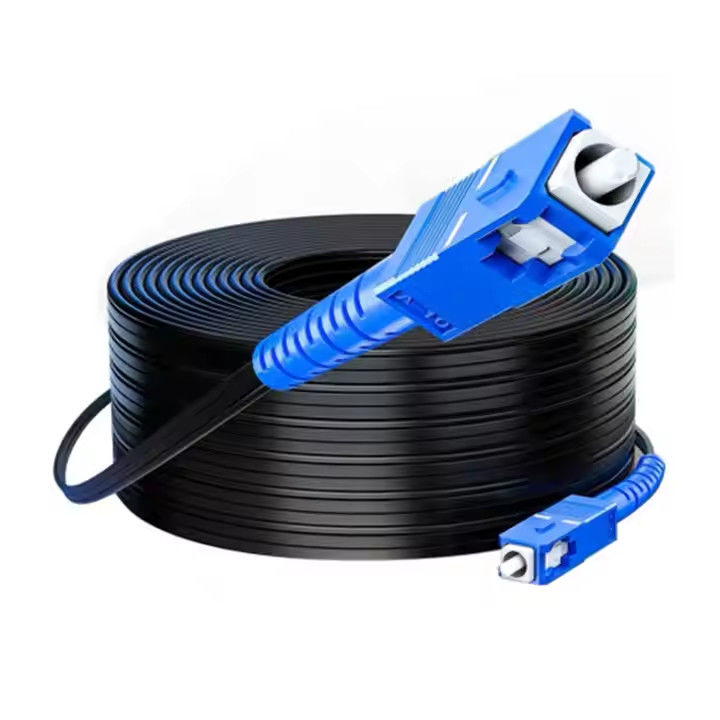

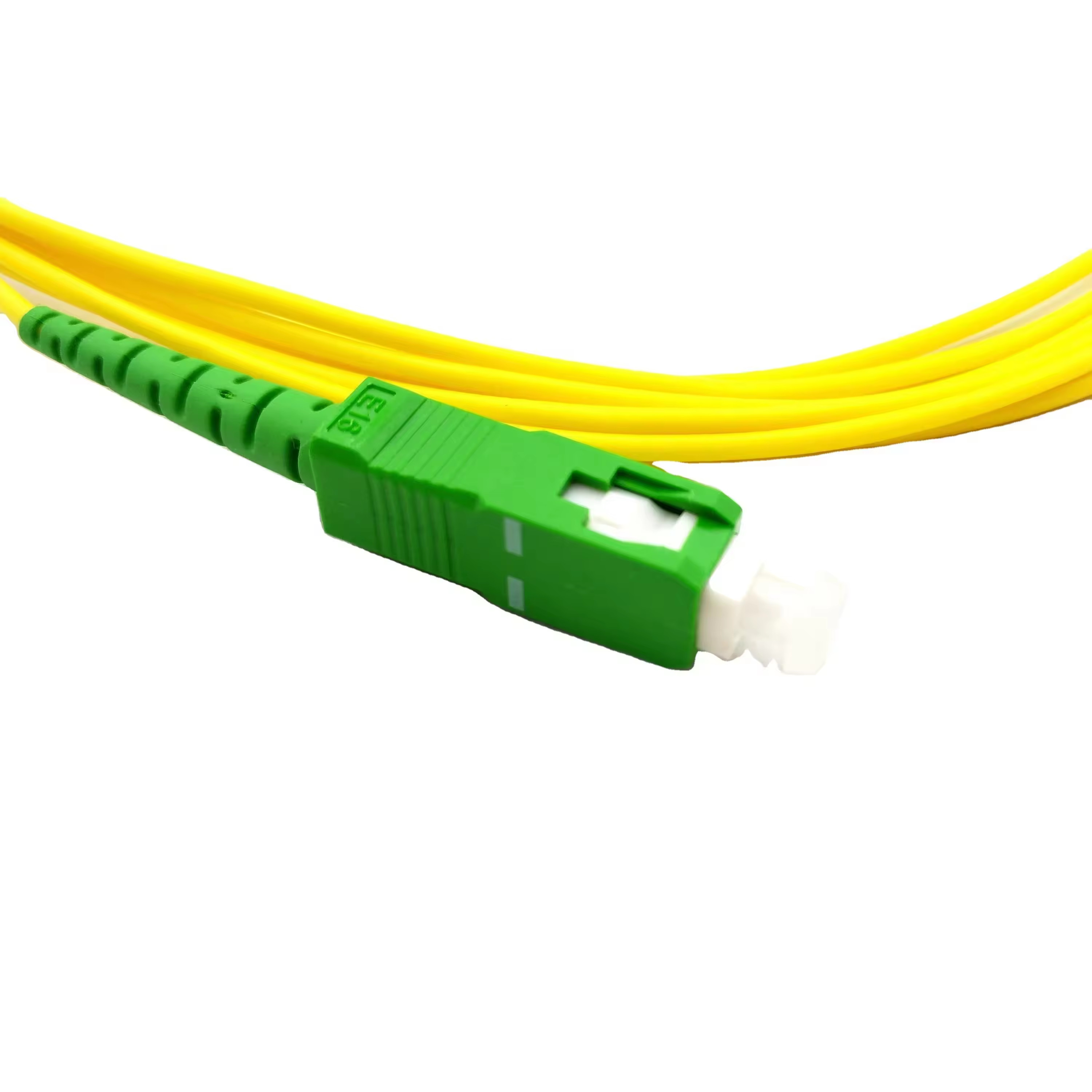

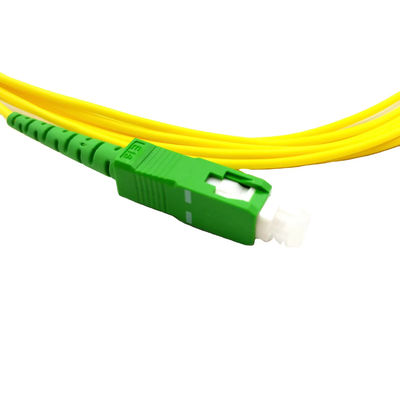

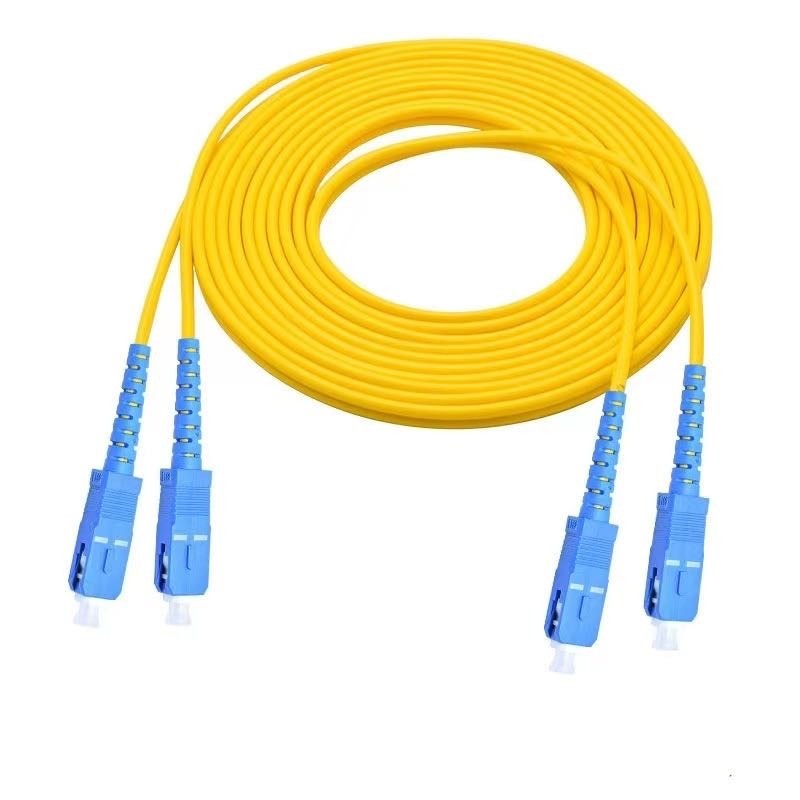

Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable
Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable
Επικοινωνήστε

Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable

Ποσότητα παραγγελίας min : 50 τεμ Συσκευασία λεπτομέρειες : 100PCS σε ένα κιβώτιο εξαγωγής
Χρόνος παράδοσης : 5-8 εργάσιμες Όροι πληρωμής : Western Union, T/T, L/C, Alipay
Δυνατότητα προσφοράς : 5000 κομμάτια την ημέρα.
Τόπος καταγωγής: Guangzhou, Κίνα Μάρκα: JQ/OEM/Customize
Πιστοποίηση: ISO 9001,ROHS CE-EMC FCC SDOC Αριθμό μοντέλου: SM-SX Patch Cord

Λεπτομερής ενημέρωση
Υλικό: PVC/LSZH Χρώμα: ΚΙΤΡΙΝΟΣ
Είδος: Διάταξη οπτικών ινών Επαναληψιμότητα: ≤ 0,2 dB
Αρίθμηση ινών: Simplex ή duplex Ποιοτικός έλεγχος: Δοκιμή 100% πριν από την αποστολή
Τύπος σύνδεσης: SC/APC-SC/UPC Όνομα προϊόντος: Καλώδιο οπτικών οπτικών ινών
Επισημαίνω:

SC APC to SC UPC fiber patch cord

,

single mode optical fiber cable

,

LSZH fiber optic patch cord

Περιγραφή προϊόντων

SC/APC a SC/UPC 1m 2m 3m Fiber Patch Cord



Product Description
9/125µm simplex 900µm buffered fiber patch cord, UPC polished and factory terminated. Fully tested for insertion and return loss with data recorded for each cord. Complies with TIA/EIA-568-B.3 and Telcordia GR-326-CORE standards. High-quality tight-buffered fiber with lifetime traceable QC.



Feature



Low Insertion loss

High return loss

Good Repeatability

Good Interchange

Excellent Environmental Adaptability





Optical Characteristics





Parameter



PC



UPC



APC



Multi-mode



Insertion loss



≤0.3dB



≤0.3dB



≤0.3dB



≤0.3dB



Return loss



≥40dB



≥50dB



≥60dB



≥35dB



Exchange



≤0.2dB



Repeatability



≤0.2dB



Servicelife



>1000times



Tensile strength



>10kg



Temperature range



-40°C to +85°C





Technical Data



Type

Standard,Master



Style

LC,SC,ST,FC.MU,DIN,MPO,SC/APC,

FC/APC,LC/APC.MU/APC



Fiber

Singlemode/Multimode

50/125,62.5/125(Multi mode) OM2&OM1

50/125,10G(Multi mode)OM3



Cable

Simplex,Duplex

outer diameter:3.0mm,20mm,0.9mm

PVC or LSZH



Polishing Manner

UPC,SPC,APC(8°&6°)



Insertion Loss

≤0.1dB (For Single mode Master)

≤0.25dB (For Single mode Standard)

≤0.25dB (ForMultimode)

Tested by JDSRM3750

Return Loss

(Single mode)

UPC≥50dB

SPC≥55dB

APC≥60dB (typ.65dB)

Tested by JDSRM3750



Repeat ability

≤0.1dB



Operating temperature

-400 C° to 850 C°



Geometry Requirement

(Single mode)

Ferrule Endface Radius

7mm≤R≤12mm (For APC)

10mm≤R≤25mm (For Standard)

Apex Offset≤30μm (For Master)

Apex Offset≤50μm (For Standard)

Under cut-50nm SU≤50nm

Tested by DORCZX-1



Application

Communication rooms

FTTH (Fiber to The Home)

LAN (Local Area Network)

FOS(fiber optic sensor)

Fiber Optic Communication System

Optical fiber connected and transmitted equipment



Connector Type

Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable 0



Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable 1





Recommed Products



Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable 2













Packing & Delivery



Packing:100/Pcs in one Carton box or OEM.

Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc

Deliverty: 3-5 days after payment dowm,According to ur order quantity.

Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable 3

Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable 4

Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable 5







Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable 6





Factory Pictures

Optical Fiber Patch Cord 3mm LSZH SC APC to SC UPC 1m 2m 3m Single Mode High Performance Patch Cable 7
