Outdoor Aerial GYTC8S Fiber Optic Cable Figure-8 Design 12/24/96 Core Steel Messenger

Περιγραφή προϊόντων

Self-Supporting Figure-8 GYTC8A / GYTC8S 12/24/96 Core Outdoor Aerial Fiber Optic Cable

Cable Structure:
Figure-8 loose-tube design with a metallic central strength member (steel wire/strand) and moisture-resistant inner sheath. Integrated steel messenger wire provides self-support for overhead installation (pole-to-pole or pole-to-premises). Tubes are filled with color-coded single-mode or multimode fibers.







Optical Characteristics:

Cable Specification

Model: GYTC8S Fiber Optic Cable
Optical Mode: Singlemode / Multimode
Fiber Types: G652, G655, OM2 50/125μm, OM1 62.5/125μm
Fiber Count: 2–144 cores
Bend Radius: 10D (Static) / 20D (Dynamic)
Service Life: >25 years
Application: Aerial self-supporting, local network, long-distance communication

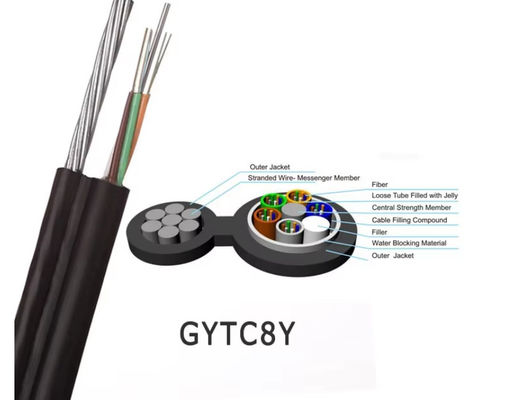

Structure

Figure-8 non-armored construction including:

1. Stranded loose tube

2. Steel wire strength member

3. Fiber filling compound

4. Fillers

5. Phosphated / galvanized steel messenger wire

6. PE outer sheath

Standards & Certification

Complies with YD/T 769-2003, IEC 60794-1
Certified: ISO9001

Key Features

• Excellent mechanical & temperature performance

• High-strength, hydrolysis-resistant loose tube

• Special filling compound for enhanced fiber protection

· Crush resistance and flexibility

FAQ

1. Are you a manufacturer?
Yes, we are a factory in Guangzhou, China. Welcome to visit.

2. What is the MOQ?
1 KM. Trial orders are supported.

3. Can I get a sample?
Yes, free samples are available; you only cover the freight.

4. Payment methods?
L/C, T/T, Western Union, Paypal.

5. Delivery time?
3–7 working days, depending on the quantity.

6. Do you offer customization?
Yes, OEM/ODM and custom logos are available.
